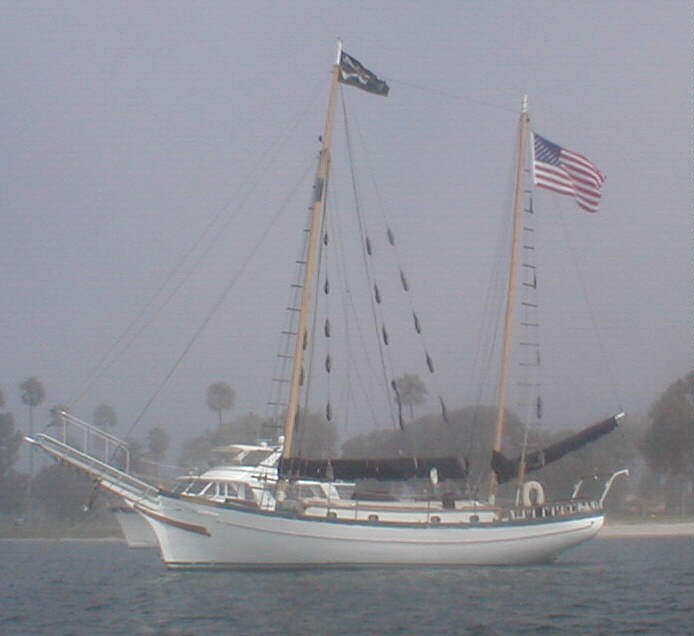

The Sea Voyager

Sea Voyager

Built in 1973 at a yard in Junction City, Oregon
Owner: Phil Buck
San Francisco, California

LOA: 49' (Including the bowsprit)
LWL: 32'
Beam: 13'6"
Draft: 5' 6"
Disp.: 17 Tons
Manufacturer: Unknown boatyard, Junction City, Oregon
Engine: 58 hp Isuzu/4 cylinders
Sleeps: 6





RETURN TO SEA WITCH HOME


Site Directory



The Sea Voyager is obviously every bit a Sea Witch though there are some subtle differences when compared with Wilbos and Hong Kong builds that have come to my attention. She was built in Oregon, and apparently to high standards. Unlike all other Sea Witches, she has bent frames rather than sawn. She also has a centered propeller shaft.

Jimmy Kenniston saved the Sea Voyager from "demolition because it seemed too precious to watch it be destroyed." Because finding a slip in or around San Diego proved impossible, Jimmy put the Voyager up for sale, and it was purchased by Alasdair Moodie and Karen Vincent, of Melbourne, Australia (February 2007).

Alasdair planned to sail the Sea Voyager to Australia where he intend to do more restoration work. Unfortunately, a thorough survey convinced Alasdair that a voyage to Australia would be too risky, and Alasdair's dream crashed. Sea Voyager was again put on the market.

In early May, 2007, Mike Russell became Sea Voyager's new owner and over the next four years accomplished much in the way of refitting and restoration.

Mike brought Sea Voyager a long way, but decided to part with her due to high monthly slip fees in the San Fransisco Bay area. He parted with Sea Voyager in early 2011, signing her over to the new owner, Phil Buck. We haven't heard from Phil as yet but wish him happy sailing.

Photos Contributed by Mike Russell
Mike Russel with Grandson Collin, February 2011

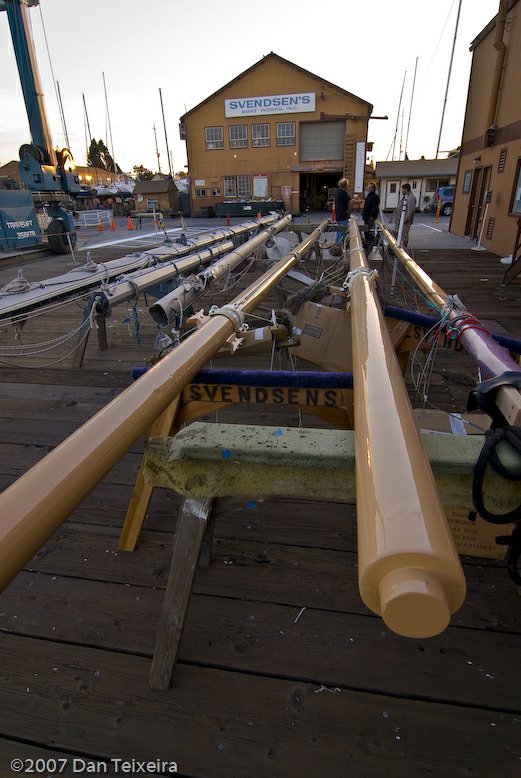

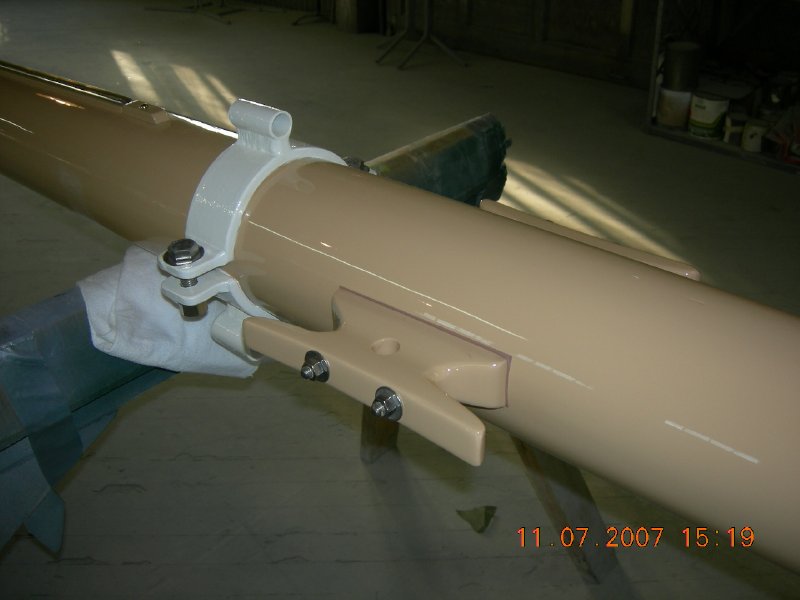

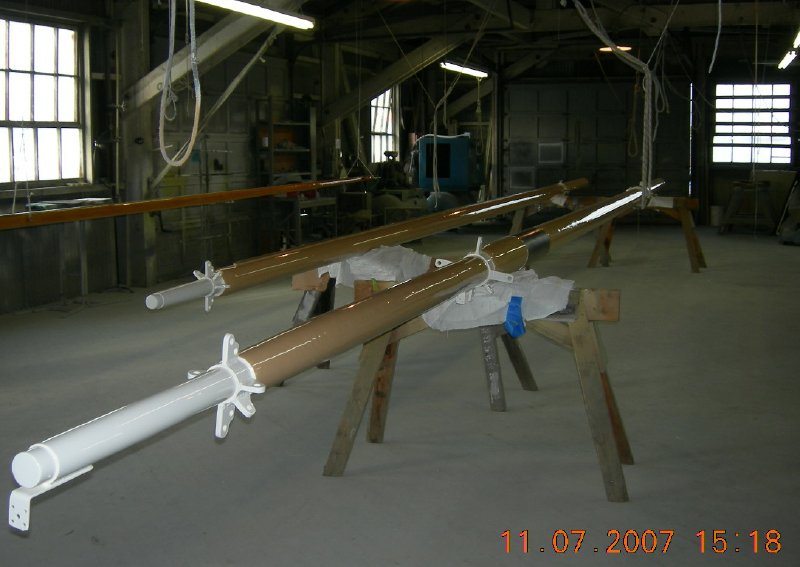

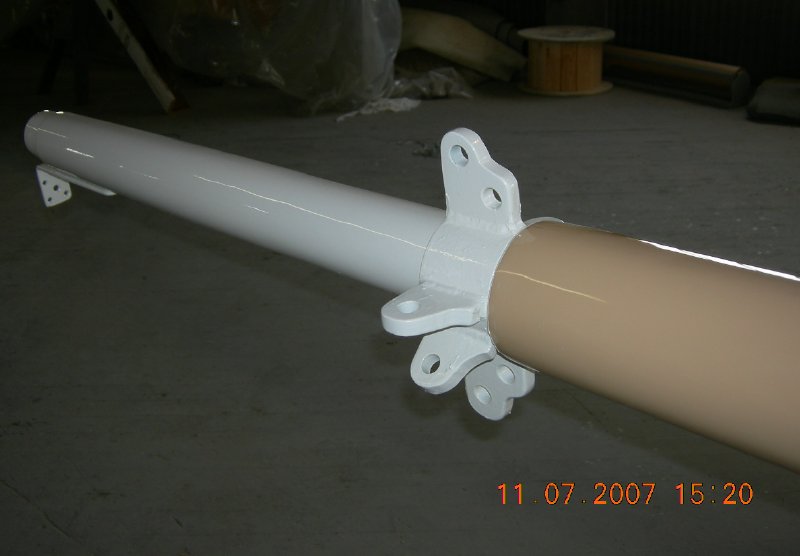

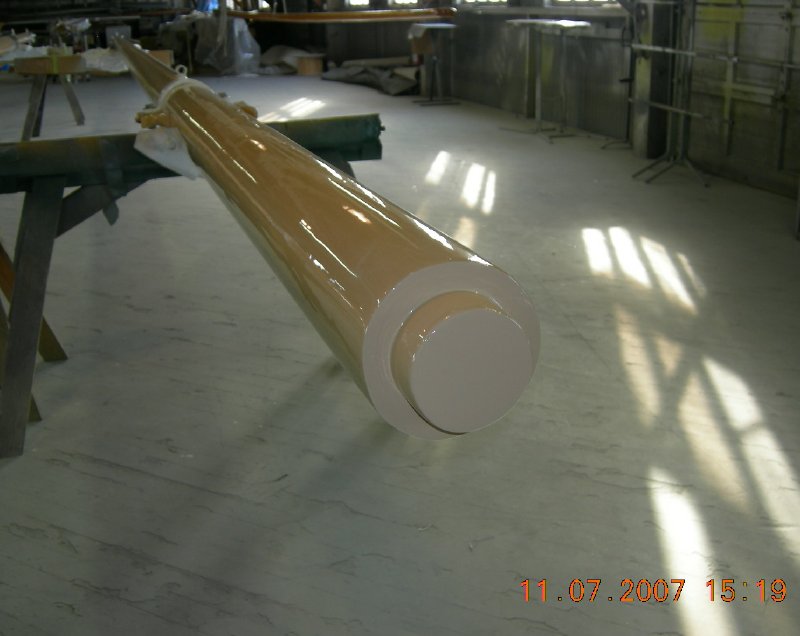

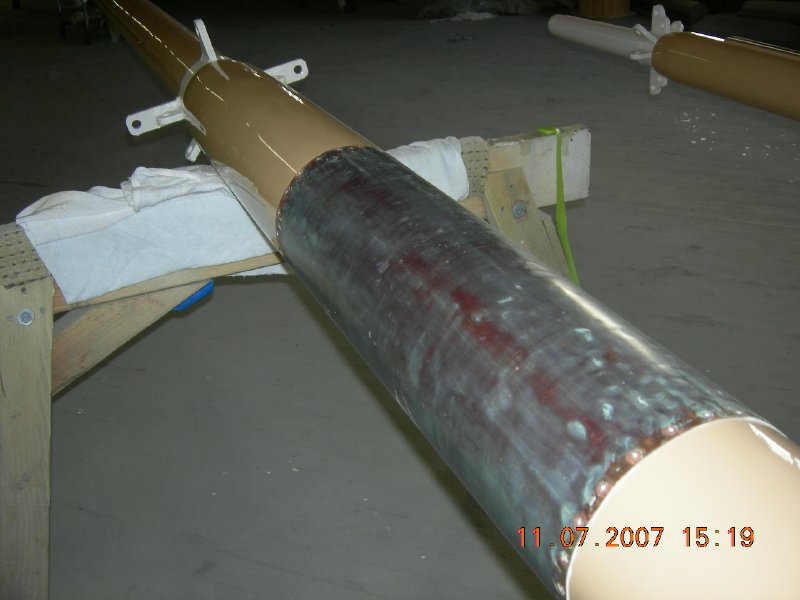

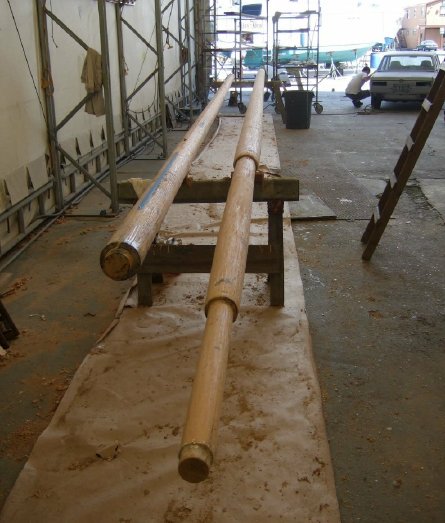

19 November, 2007 Progress report: Here are some recent pictures of the masts for Sea Voyager. As you can see, they look like new, actually, I doubt seriously that they ever looked this good when they were new. The folks at Svendsen’s in Alameda, did an exceptional job. I will follow through and work with them on a schedule to stand the masts right after Thanksgiving. I will take photos of that event and send them along. Regards, Mike

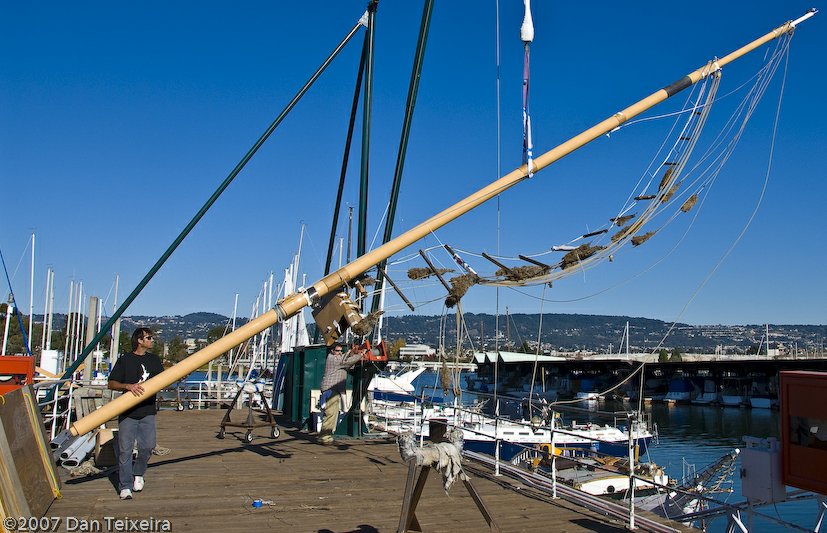

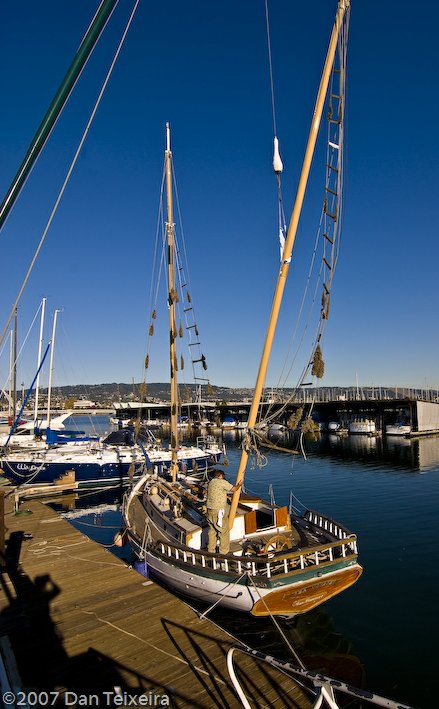

7 December, 2007 Progress Photos. Masts have been shipped.

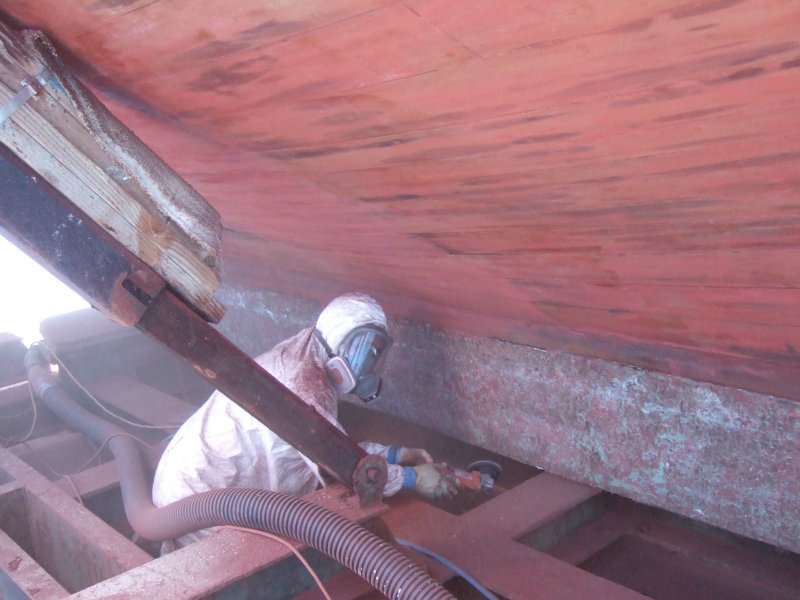

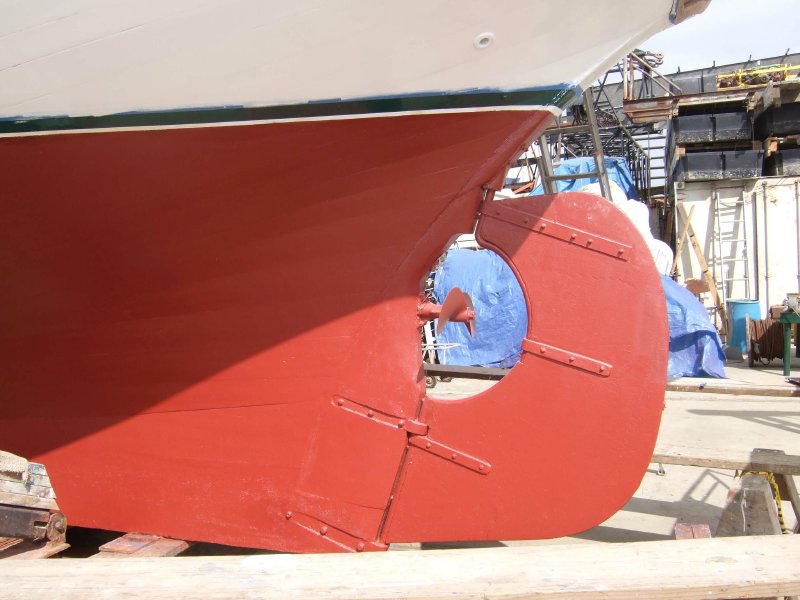

Latest Photos - June 2008 - More to follow

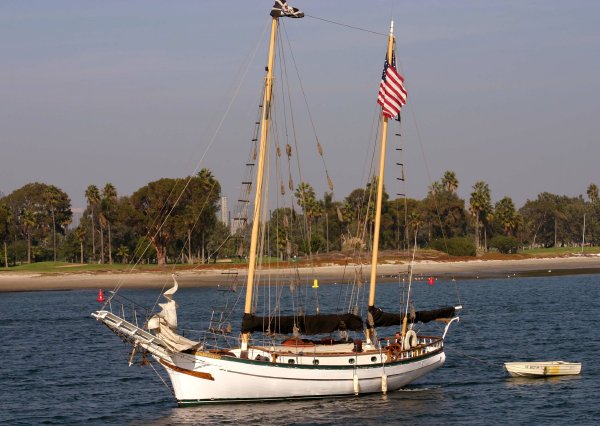

Photo at right
received March,
15th, 2010

OLDER PHOTOS OF
SEA VOYAGER PHOTOS
(Click on Thumbnails for Larger View)



Hull & Structure, Cabin & Deck

Material, Hull & Bottom - Port Orford Cedar
Finish - Enamel
Planking - Carvel
Stem - 7.5" Fir full knew w/breast hook
Stern - Inner plywood mahogany face
Keel - 7.5" Fir with full rabbit - 8000 lb. ballast
Frames - Bent 10" centers, 1-1/2" X 2" Oak
Deck - 1-1/2" Douglas Fir over Plywood Sub
Cabin - Fir 6/4 enameled
Frames - Floor timbers 1-1/2" Fir Full
Fastenings - Galv. Bolt
Beams - 2-1/2" X 3-3/4" Fir Full
Ventilation - ambient
Longitudinal* - 3-1-12 X 3-3/4" Fir Full
Rubrails - Mahogany Hardwood
Type of Bottom - Round Chine

*Webmaster's note: "Longitudinal" probably refers to bilge stringers. Maybe "3-1-12" should have been 3 stringers, 1-1/2" X 3-3/4"
